 ROUND TOP AND BOTTOM CAVITIES


ROUND TOP AND BOTTOM CAVITIES - 420 SS (SOFT)

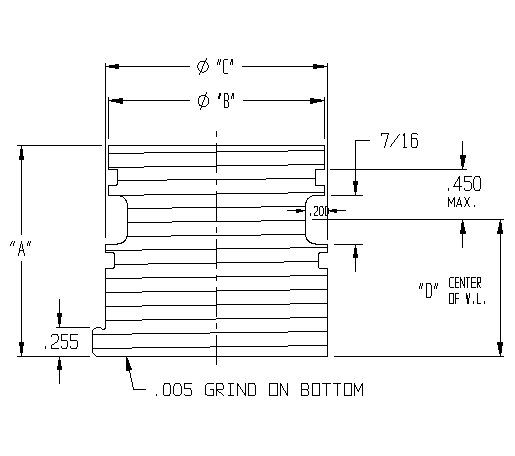

Round Mold Cavities


Omni Standard "A" Plate is 1.375 Thick.
Omni Standard "B" Plate is 1.875 Thick.

Round cavities are lathed complete, leaving grind stock on the top, bottom and O.D.

O-rings are included
(*) Indicates Finish Diamter (No Grind Stock)
Top CATALOG # Bottom CATALOG #
A B C D  A B C D
1.385 1.940* 2.000* 0.725 TCV-19411-420 1.885 1.940* 2.000* 1.225 BCV-19410-420
1.390 1.950 2.010 0.725 TCV-19421-420 1.890 1.950 2.010 1.225 BCV-19420-420
1.640 1.950 2.010 0.725 TCV-19431-420 2.140 1.950 2.010 1.225 BCV-19430-420
2.390 1.950 2.010 0.725 TCV-19451-420 2.890 1.950 2.010 1.225 BCV-19450-420
1.395 2.450 2.510 0.725 TCV-24421-420 1.890 2.450 2.510 1.225 BCV-24420-420
1.635 2.450 2.510 0.725 TCV-24431-420 2.140 2.450 2.510 1.225 BCV-24430-420
2.385 2.450 2.510 0.725 TCV-24451-420 2.890 2.450 2.510 1.225 BCV-24450-420
1.385 3.440* 3.500* 0.725 TCV-34411-420 1.885 3.440* 3.500* 1.225 BCV-34410-420
1.390 3.450 3.510 0.725 TCV-34421-420 1.890 3.450 3.510 1.225 BCV-34420-420
1.640 3.450 3.510 0.725 TCV-34431-420 2.140 3.450 3.510 1.225 BCV-34430-420
2.390 3.450 3.510 0.725 TCV-34451-420  2.890 3.450 3.510 1.225 BCV-34450-420
1.390 4.950 5.010 0.725 TCV-49421-420 1.890 4.950 5.010 1.225 BCV-49420-420
1.640 4.950 5.010 0.725 TCV-49431-420 2.140 4.950 5.010 1.225 BCV-49430-420
2.390 4.950 5.010 0.725 TCV-49451-420 2.890 4.950 5.010 1.225 BCV-49450-420
1.390 6.450 6.510 0.725 TCV-64421-420 1.890 6.450 6.510 1.225 BCV-64420-420
1.640 6.450 6.510 0.725 TCV-64431-420 2.140 6.450 6.510 1.225 BCV-64430-420
2.390 6.450 6.510 0.725 TCV-64451-420 2.890 6.450 6.510 1.225 BCV-64450-420



CAVITIES FOR CAM ACTION MOLDS 420SS (SOFT)



TOP
 Bottom
A B C D TOP CAVITY CAVITY # A B C D BOTTOM CAVITY CATALOG #
1.395 2.450 2.510 0.725 TCV-24421-420 1.497 2.450 2.510 0.725 BCV-24425-420
1.635 2.450 2.510 0.725 TCV-24431-420 1.987 2.450 2.510 0.725 BCV-24435-420
2.385 2.450 2.510 0.725 TCV-24451-420 3.487 2.450 2.510 0.725 BCV-24455-420




ROUND TOP AND BOTTOM CAVITIES - S-7 STEEL (SOFT)



Omni Standard "A" Plate is 1.375 Thick.
Omni Standard "B" Plate is 1.875 Thick.

Round cavities are lathed complete, leaving grind stock on the top, bottom and O.D.

O-rings are included
(*) Indicates Finish Diamter (No Grind Stock)
TOP CAVITY BOTTOM CAVITY
A B C D  CATALOG # A B C D  CATALOG #
1.385 1.940* 2.000* 0.725 TCV-19411-S7 1.885 1.940* 2.000* 1.225 BCV-19410-S7
1.390 1.950 2.010 0.725 TCV-19421-S7 1.890 1.950 2.010 1.225 BCV-19420-S7
1.640 1.950 2.010 0.725 TCV-19431-S7 2.140 1.950 2.010 1.225 BCV-19430-S7
2.390 1.950 2.010 0.725 TCV-19451-S7 2.890 1.950 2.010 1.225 BCV-19450-S7
1.395 2.450 2.510 0.725 TCV-24421-S7 1.890 2.450 2.510 1.225 BCV-24420-S7
1.635 2.450 2.510 0.725 TCV-24431-S7 2.140 2.450 2.510 1.225 BCV-24430-S7
2.385 2.450 2.510 0.725 TCV-24451-S7 2.890 2.450 2.510 1.225 BCV-24450-S7
1.385 3.440* 3.500* 0.725 TCV-34411-S7 1.885 3.440* 3.500* 1.225 BCV-34410-S7
1.390 3.450 3.510 0.725 TCV-34421-S7 1.890 3.450 3.510 1.225 BCV-34420-S7
1.640 3.450 3.510 0.725 TCV-34431-S7 2.140 3.450 3.510 1.225 BCV-34430-S7
2.390 3.450 3.510 0.725 TCV-34451-S7  2.890 3.450 3.510 1.225 BCV-34450-S7
1.390 4.950 5.010 0.725 TCV-49421-S7 1.890 4.950 5.010 1.225 BCV-49420-S7
1.640 4.950 5.010 0.725 TCV-49431-S7 2.140 4.950 5.010 1.225 BCV-49430-S7
2.390 4.950 5.010 0.725 TCV-49451-S7 2.890 4.950 5.010 1.225 BCV-49450-S7
1.390 6.450 6.510 0.725 TCV-64421-S7 1.890 6.450 6.510 1.225 BCV-64420-S7
1.640 6.450 6.510 0.725 TCV-64431-S7 2.140 6.450 6.510 1.225 BCV-64430-S7
2.390 6.450 6.510 0.725 TCV-64451-S7 2.890 6.450 6.510 1.225 BCV-64450-S7



CAVITIES FOR CAM ACTION MOLDS S-7 STEEL (SOFT)



TOP CAVITY
BOTTOM CAVITY
A B C D CATALOG # A B C D CATALOG #
1.395 2.450 2.510 0.725 TCV-24421-S7 1.497 2.450 2.510 0.725 BCV-24425-S7
1.635 2.450 2.510 0.725 TCV-24431-S7 1.987 2.450 2.510 0.725 BCV-24435-S7
2.385 2.450 2.510 0.725 TCV-24451-S7 3.487 2.450 2.510 0.725 BCV-24455-S7
